        V series

V series:

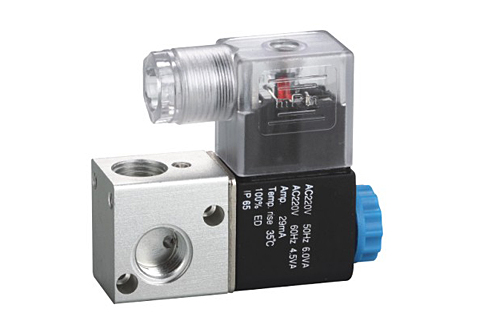

V series: V series solenoid valve and pilot valve is the common controlling element, which has the full kinds of port size, from 1/8” to 1”. And It also has different specification, flow rate and position. It has many connecting ways with the execution element.


2V Ordering Code
Joint Pipe Bore G1/4
Working Medium 40 Micron Filtered Air
Operating-Pressure Range 0~0.8PMa
Operating Temperature Range 0~60℃
Position and Way Number Two-position Three-way
2v Tyle
Working Medium Air,Water,Oil
Motion Pattern Direct Drive Type Guide Type
Type Normal Close Type
Aperture of Flow Rate mm 1.0 2.5 13 25
CV Value 0.10 0.23 6.2 23
Joint Pipe Bore M4×0.7 1/8 1/4 3/8 1/4 3/4 1
Operation Fluid Viscosity 20CST(Below)
Mpa  Working-pressure Air,Water,Oil:0.05~0.7
Mpa  Max.Pressure Resistance 1.2 1.6 1.0
Operature Temperature ℃ -10~80℃
Voltage Range ±10%
Protect Class IP65
Power Consumption AC:4.5VA  DC:3W
Insulation F Class
